Replication Timing Studies



Fractional S-phase sorting using bromodeoxyuridine uptake to study gene replication timing

The determination of the percentage of cells in S-phase is dependent upon the detection of a thymidine analogue, bromodeoxyuridine (BrdU), which when added to culture medium is incorporated into DNA during DNA replication is a well known technique in flow cytometry.

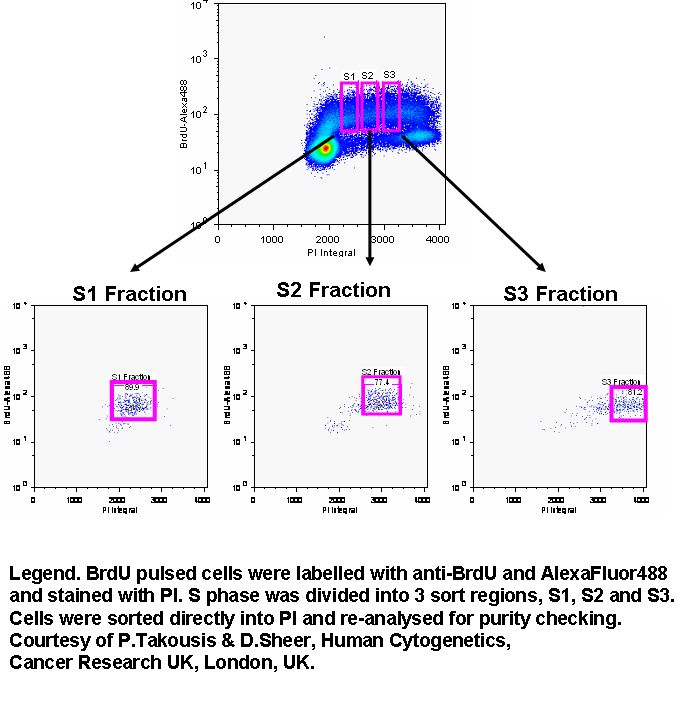

Gene replication timing studies uses the BrdU labelling technique, S phase cells are sorted into 3 or more fractions. Collected fractions are analysed by PCR for genetic analysis after immunoprecipitation of DNA via incorporated BrdU.


Top


PI S Phase Sorting

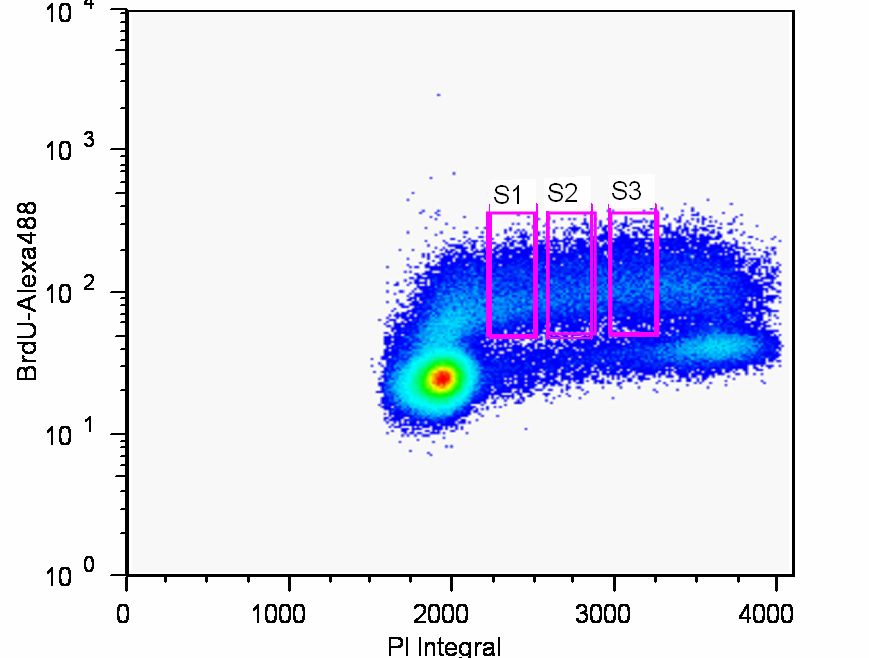

BrdU S Phase Sorting
[click for large version]
