Antibody Binding Kinetic Studies



The binding of fluorescently labelled monoclonal antibodies (mcab) to cell plasma membranes can be studies in real-time. Cells of interest are initially acquired for 30 seconds to generate a baseline control of Fluorescence against Time parameters. Antibody is then added to the cells, this is usually followed by a rapid rise in mcab related fluorescence against time. This can be compared to isotype control antibody added to the cells in the same manner.

Below are given examples of anti-CD38-PE binding kinetics, a dose dependent binding kinetic study of anti-CXCR4-APC and a comparison of of the binding kinetics of different clones of anti-CD4-APC.



Top

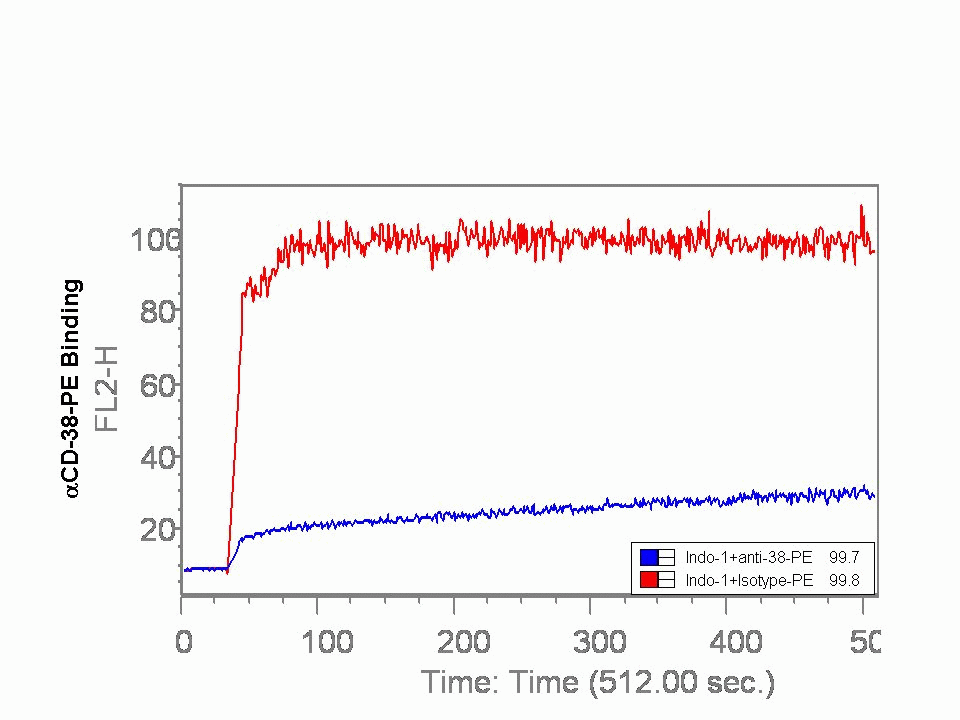

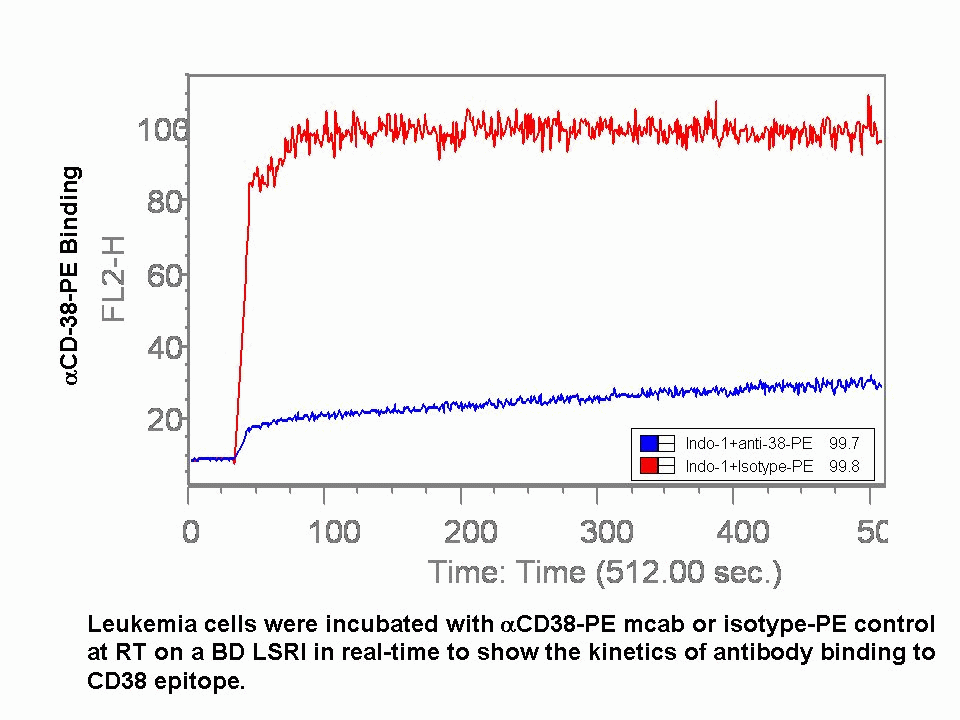

Anti-CD38-PE binding

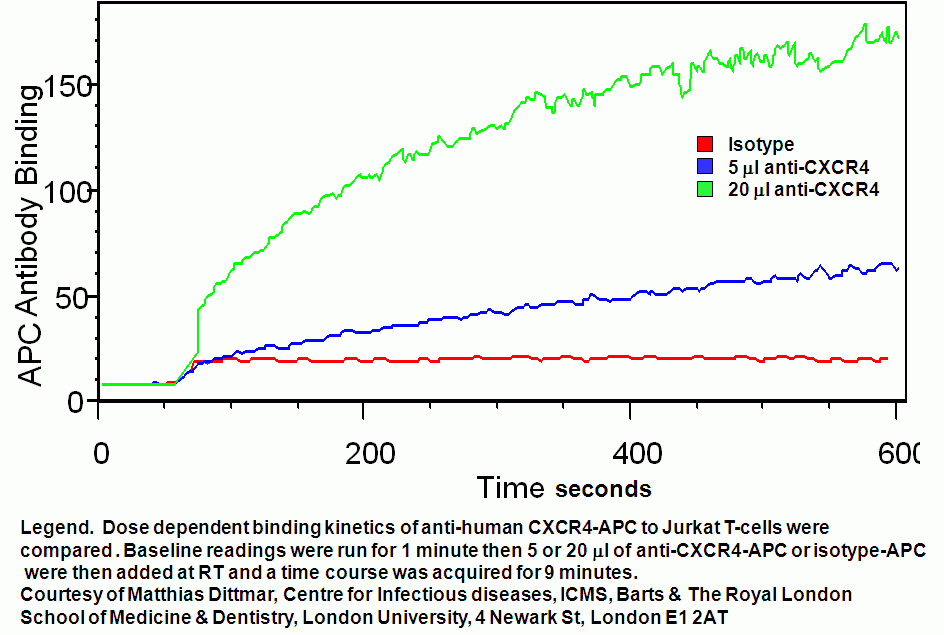

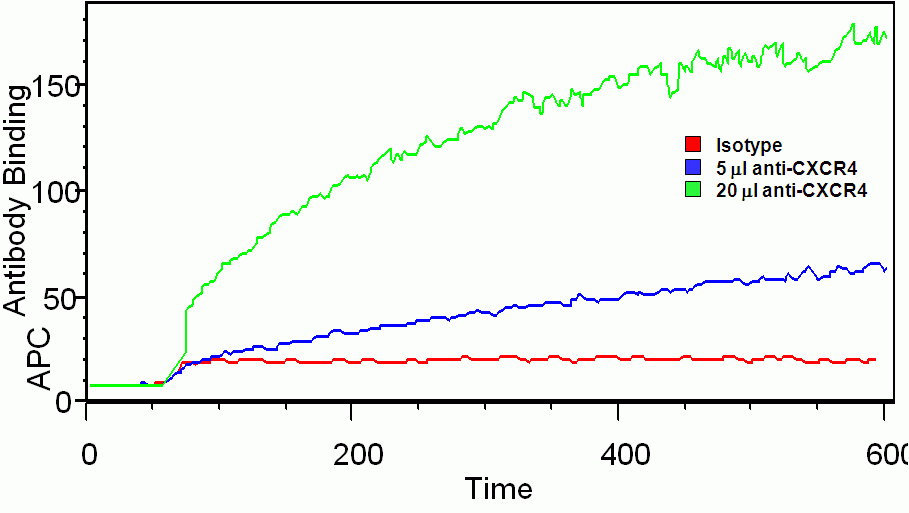

ant-CXCR4 dose response kinetics

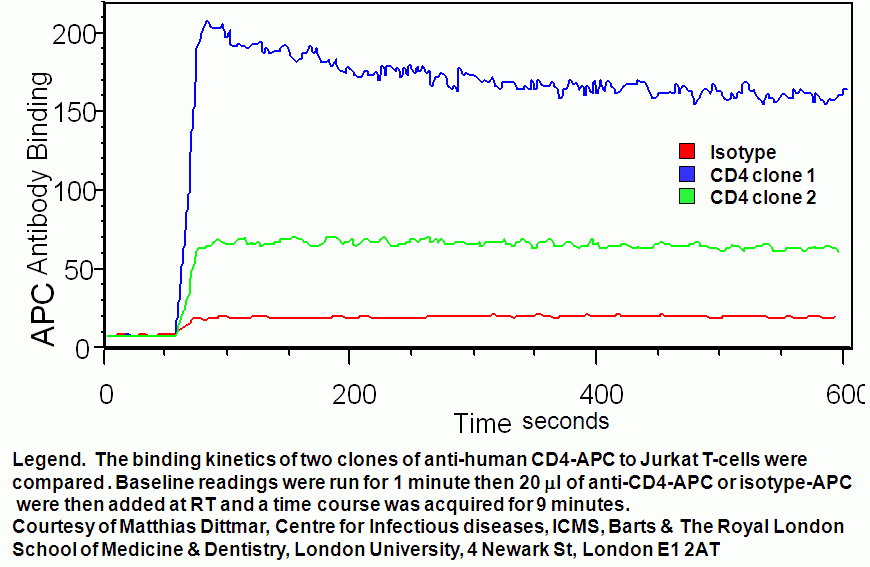

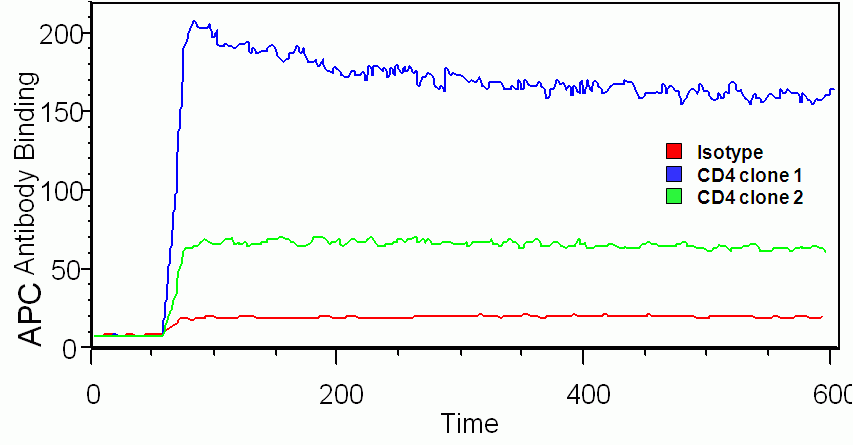

CD4 clone binding kinetics
