Human Antigen Kits

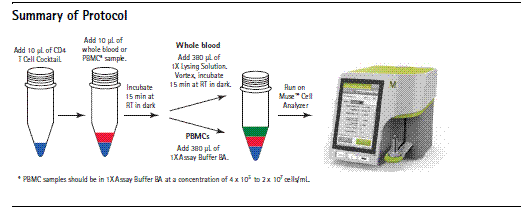

The Muse Human CD Antigen kits employ two antibodies stained with antibody of choice, CD4-PE, CD8-PE, CD19-PE, CD69-PE, CD25-PE or equiqualent and a pan lymphocyte marker conjugated to a red fluorochrome. Whole blood can be employed as a no wash RBC lysing reagent is provided with the kit, see staining protocol below. The Muse also gives absoloute counts for these lymphocyte subsets.


Top

Light scatter

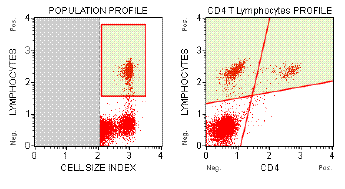

CD4 kit

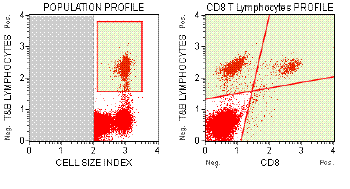

CD8 Kit

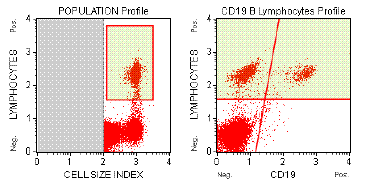

CD19 B Cell Kit
