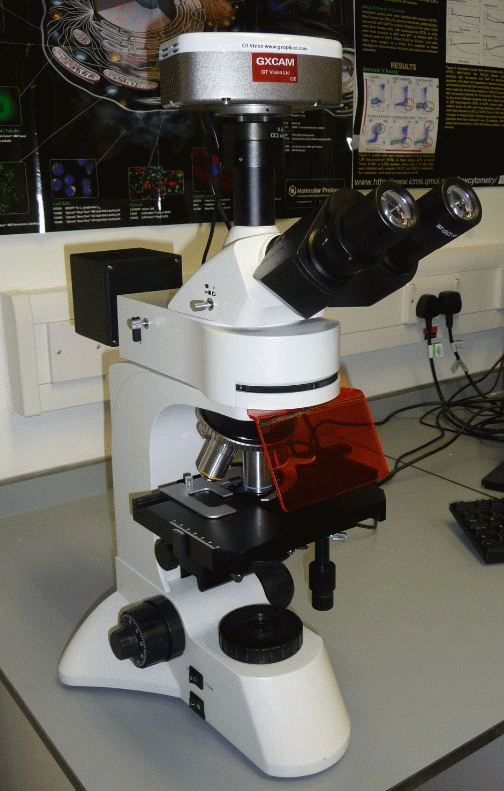

| LED Microscope |
|
|
|
| Specification |
Comments |
| Microscope |
| Upright |
10x Magnification plan eyepiece |
| Slide Stage |
Fine control in X-Y position only |
| Objectives all PL - Plan Achromatic |
4x NA 0.1 WD 37.4mm
10x NA 0.25 WD 6.6mm
40x NA 0.65 WD 0.64mm
100x Oil Immersion NA 1.25 WD 0.19mm
|
| Excitation optics |
| Objectives |
x4, x10, x40, x100 |
| LED light sources |
330-400nm UV LED
395-415nm Violet LED
420-485nm Blue LED
460-550nm Green LED
White light LED for Brightfield |
| Emission optics |
| Four Colour Filter wheel |
425nm UV
455nm DAPI
515nm FITC
590nm TRITC |
| Colour Digital CCD Camera |
GXCAM-3 3 megapixel |
| Data management |
| Central processing |
Dual-Core Intel Xeon processors |
| Data storage |
Nine and 36-GB internal hard drive, 3.5-inch floppy drive, CD-RW drive |
| Monitor |
22-inch LCD monitor |
| Software |
GXCapture Software |
| Data File Structure |
RAW, JPEG, BMP |
|
| |
