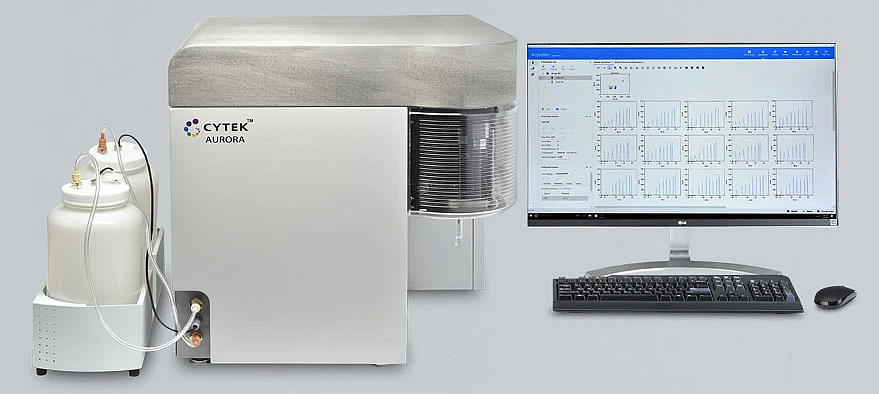

| Cytek Aurora Spectral Analyser |
|
|
|
| Specification |
Comments |
| Performance |
| Fluorescence sensitivity |
<35 molecules of equivalent soluble fluoroscein |
| Fluorescence resolution |
< 3% for PI labelled chick erythrocyte nuclei |
| Forward and side scatter sensitivity |
Sensitivity to detect 200 nm particles |
| Forward and side scatter resolution |
35,000 events/sec |
| Excitation optics |
| Optical platform |
Fixed optical assembly, |
| Lasers |
Blue, Yellow-Green, Violet, Red & UV lasers with 96 well plate reader |
| Emission optics |
| Optical Coupling |
Quartz cuvette is coupled to emission lens by refractive index-matching optical gel for optimum collection efficiency |
| Fluorescence Detectors |
64 high performance PMTs, Blue laser 14 parameters, Violet 16, Red 8, UV 16 and Yellow-Green laser 10 parameters |
| 40 fluorescence detectors |
High performance, high dynamic range photomultipliers with spectral unmixing |
| Signal processing |
| Workstation resolution |
6.5 decades for area detection with spectral unmixing |
| Data acquisition channels |
40 acquisition channels |
| Dynamic range |
22-bit data acquisition
6.5-decade logarithmic display with pre-set voltages |
| Pulse processing |
available
|
| Time |
Time available correlated to any parameter |
| Digital spectral unmixing |
Electronics provides spectral unmixing |
| Data management |
| Central processing |
Intel processor |
Spectroflow Software
|
Windows 10 computer |
| Monitor |
20-inch LCD monitors |
| Data File Structure |
Flow Cytometry Standard 3.1 |
|
| |
